18650 Batteries Powered 1.9X 2.7X Thermal Imaging Sight

Product Categories
Hubei Cono Technology Co,Ltd
Contact Now

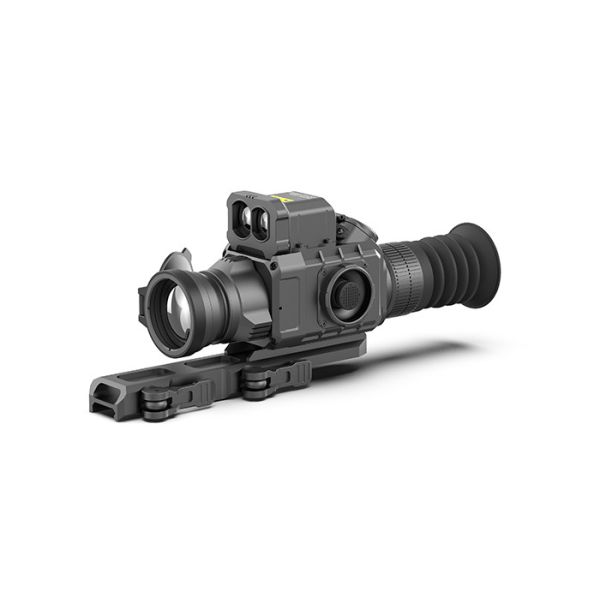

18650 Batteries Powered 1.9X 2.7X Thermal Imaging Sight

  • 1
  • 2

Brand Name : CONO

Model Number : Polaris 350RL

Certification : ISO,CE,ROSH

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C, T/T, T/T, Western Union, MoneyGram

Supply Ability : 10000 PCS PER YEAR

Delivery Time : 7-30 Days

Packaging Details : Negotiable

Type : Uncooled Vox

Resolution : 384×288

Frame rate : 50Hz

Contact Now

Polaris gives out long lasting operation time.External sources

Polaris gives out long lasting operation time.External sources, such as power banks power bank with high-capacity is also capable of increasing the total operation time. 2 pcs of 18650 batteries meet the hunting needs of one night.

18650 Batteries Powered 1.9X 2.7X Thermal Imaging Sight

Polaris Technical Data Sheet
　 Polaris 335R Polaris 335RL Polaris 350R Polaris 350RL Polaris 650R Polaris 650RL
Detector
Type Uncooled Vox Asi
Resolution 384×288 640×480
Frame rate 50Hz
Pitch 17μm
Spectral range 8-14μm
NETD Less than 50mk
Optical Characteristics
Objective lens 35mm/F1.1 50mm/F1.1 50mm/F1.1
Magnification 1.9x 2.7x 2.4x
FOV 10.7°×8.0° 7.5°×5.6° 12.5°×9.4°
Close-up range 5m
Dioptre adjustment -5D-4D
Functions
Zoom 2x/4x/PIP
Palette 6 optional(can be customized)
Start up time Less than 5 seconds
Start up image Can be customized
Menu and information GUI(Can be customized)
Image enhancement DDE
Contrast and brightness AGC
Online update Both code and GUI resources
Display
Type OLED
Resolution 1024×768
External video PAL,WIFI
Storage 32G
Power Supply
Battery 2x18650
External power supply 5V micro USB
Working time with battery 8h 6h
Physical Characteristics
Weight without battery 618g 688g 650g 720g 630g 700g
Size 180*76*83mm 180*76*100mm 196*76*83mm 196*76*100mm 188*76*83mm 188*76*100mm
Environmental Compatibility
Water proof IP67
Operating temperature -20℃-50℃
Storage temperature -40℃-60℃
Laser Rangefinder(Optional)
Safety class for laser equipment
according to IEC 60825-1:2014		 1
Measuring range 5-1000m
Measurement accuracy ± 1m
